Tunnel boat and drag racers looking to get the most out of Mercury V6 2-stroke outboards—like the SST-120, 260 EFI, and S3000—often run at 7,500-10,500 RPM in tough races. The max timing and timing curve, which controls when the spark fires, are key to strong power while avoiding pre-detonation.
The Alternator-Driven Ignition (ADI) system uses switchboxes that store and release energy for sparks. In these boxes, the bias circuit creates a negative voltage (-7V to -10V) that works against the positive trigger voltage (5-20V, which gets stronger as RPM climbs). This setup naturally pulls back timing at higher RPM to prevent firing too early and causing damage.
The ADI system works like this: A stator under the flywheel creates electricity as magnets spin by. This power charges capacitors in the switchbox. Triggers send signals to release the energy through coils to make sparks. The bias circuit pulls from the stator to make a negative charge that delays the spark as speed builds, keeping things safe.
In racing setups without extra modules (to keep things simple and reliable), the timing curve starts at your set point (done while cranking the engine with full throttle) and stays steady through mid-speeds, then eases back at high RPM thanks to the bias.
The bias resistance—checked from the white/black wire to ground—can make a difference: the German SS-77 boxes at ~14,700 ohms create stronger bias for quicker pull-back, while racing A14 types (like 332-7778A14) at 9,600 ohms have weaker bias for holding timing longer.
Buckshot Racing #77's testing and racing shows that easing off max timing at higher RPM can lead to better top-end speed, since too much advance fights the fast-moving pistons and causes early knock.
Our German 14,700-ohm box can sometimes give better all-around results with stronger low-end timing. Racers should test with ET times, lap times, test wheel runs, or dyno pulls to see what fits best.

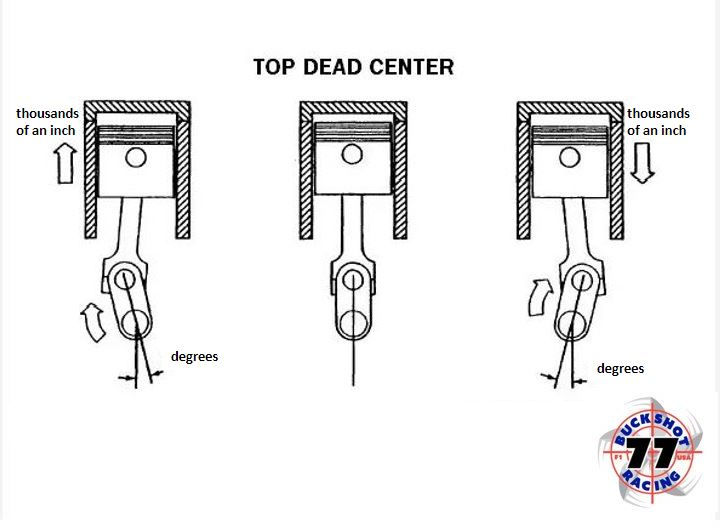

This article compares curves for Mercury A14 9,600-ohm vs. our German SS-77 14,700-ohm boxes at three starting points (25°, 27°, 29° before top dead center), with tips for tunnel boats (up to ~8,600 RPM) and drag boats (up to 10,500 RPM).
Bias Circuit Overview in Racing ADI Systems
How It Works: The bias pulls power from the stator to make a negative voltage that slows down the spark signal as RPM rises, avoiding early firing and knock.
Resistance Differences:
14,700 Ohms Switchboxes: More resistance means stronger bias (~-9V to -10V), so timing pulls back sooner and harder—good for setups needing solid low-to-mid speed power.
9,600 Ohms Switchboxes: Less resistance means weaker bias (~-7V to -8V), so timing holds longer before easing off—great for quick starts but test against the other to see.
Key Takeaways from Buckshot Racing #77: The 14,700-ohm box can win out with better starting timing; test (ETs, laps, wheels, dynos) to pick the winner for your boat.
Timing Curve Comparisons
Buckshot Racing #77 testing shows curves starting at your set timing, holding steady mid-range, then easing back above 6,000-7,000 RPM due to bias.
The 9,600-ohm holds longer for pull, while 14,700-ohm eases sooner for safety. Charts go to 10,500 RPM for drags, but notes highlight tunnel limits at 8,600 RPM. Curves are based on electronic calculations modeling bias opposition to trigger voltage, with retard ~3-4 deg total drop by max RPM for realistic racing.
Chart 1: 25° BTDC Static Timing
RPM | 14,700 Ohms Switchboxes (Advance ° BTDC) | 9,600 Ohms Switchboxes (Advance ° BTDC) |
500 | 25.0 | 25.0 |
1,000 | 25.0 | 25.0 |
2,000 | 25.0 | 25.0 |
3,000 | 25.0 | 25.0 |
4,000 | 25.0 | 25.0 |
5,000 | 25.0 | 25.0 |
6,000 | 25.0 | 25.0 |
7,000 | 24.7 | 24.8 |
8,000 | 24.2 | 24.5 |
8,600 | 23.9 | 24.3 |
9,000 | 23.7 | 24.1 |
10,000 | 23.2 | 23.7 |
10,500 | 23.0 | 23.5 |
At 25° start, the 14,700-ohm eases ~1.1° by 8,600 RPM (tunnel max) and ~2° by 10,500 RPM (drag max), favoring low-end. The 9,600-ohm holds better, dropping ~0.7° at 8,600 RPM and ~1.5° at 10,500 RPM for smoother high speeds.
Chart 2: 27° BTDC Static Timing
RPM | 14,700 Ohms Switchboxes (Advance ° BTDC) | 9,600 Ohms Switchboxes (Advance ° BTDC) |
500 | 27.0 | 27.0 |
1,000 | 27.0 | 27.0 |
2,000 | 27.0 | 27.0 |
3,000 | 27.0 | 27.0 |
4,000 | 27.0 | 27.0 |
5,000 | 27.0 | 27.0 |
6,000 | 27.0 | 27.0 |
7,000 | 26.7 | 26.8 |
8,000 | 26.2 | 26.5 |
8,600 | 25.9 | 26.3 |
9,000 | 25.7 | 26.1 |
10,000 | 25.2 | 25.7 |
10,500 | 25.0 | 25.5 |
Buckshot Racing #77 testing likes 27° for SST-120/260 EFI balance: 14,700 ohms pulls ~1.1° at 8,600 RPM and ~2° at 10,500 RPM, strong for starts; 9,600 ohms drops ~0.7° at 8,600 RPM and ~1.5° at 10,500 RPM for top-end flow.
Chart 3: 29° BTDC Static Timing
RPM | 14,700 Ohms Switchboxes (Advance ° BTDC) | 9,600 Ohms Switchboxes (Advance ° BTDC) |
500 | 29.0 | 29.0 |
1,000 | 29.0 | 29.0 |
2,000 | 29.0 | 29.0 |
3,000 | 29.0 | 29.0 |
4,000 | 29.0 | 29.0 |
5,000 | 29.0 | 29.0 |
6,000 | 29.0 | 29.0 |
7,000 | 28.7 | 28.8 |
8,000 | 28.2 | 28.5 |
8,600 | 27.9 | 28.3 |
9,000 | 27.7 | 28.1 |
10,000 | 27.2 | 27.7 |
10,500 | 27.0 | 27.5 |
At 29°, the 14,700-ohm eases ~1.1° by 8,600 RPM and ~2° by 10,500 RPM, solid for torque; 9,600 ohms drops ~0.7° at 8,600 RPM and ~1.5° at 10,500 RPM for high-speed ease.
Implications for Tunnel Boat and Drag Racers
Tunnel Boats (Max ~8,600 RPM): Steady curves like 9,600 ohms help through turns; 14,700 ohms might shine with early power—check lap times.
Drag Boats (Max ~10,500 RPM): Long-hold advance aids holeshots; 14,700 ohms could lead overall—test ET times or dynos.
Compared to tunnels, drags see more retard (extra ~1° drop from 8,600 to 10,500 RPM), making 9,600 ohms better for holding speed without knock at extreme revs. Test both boxes.
Tuning Tips for Racers
Static Setup: Set 25-29° before top dead center while cranking with full throttle, using the Buckshot Racing Super Timing Magnet.
Testing Ways: Check with ET times, lap times, test wheel runs, or dyno pulls to pick the right box.
Box Choice: Try 14,700 ohms and 9,600 ohms (A14); match (don't mix) them in V6 dual switchbox setups.
Safety Steps: Run race fuel; check j-gap for timing advance line.
Conclusion
Test with ET times, lap times, test wheel runs, or dyno pulls to match your boat in tunnels or drags. Pick static timing (25-29°) based on tests, and tweak bias for top race results without risks.
