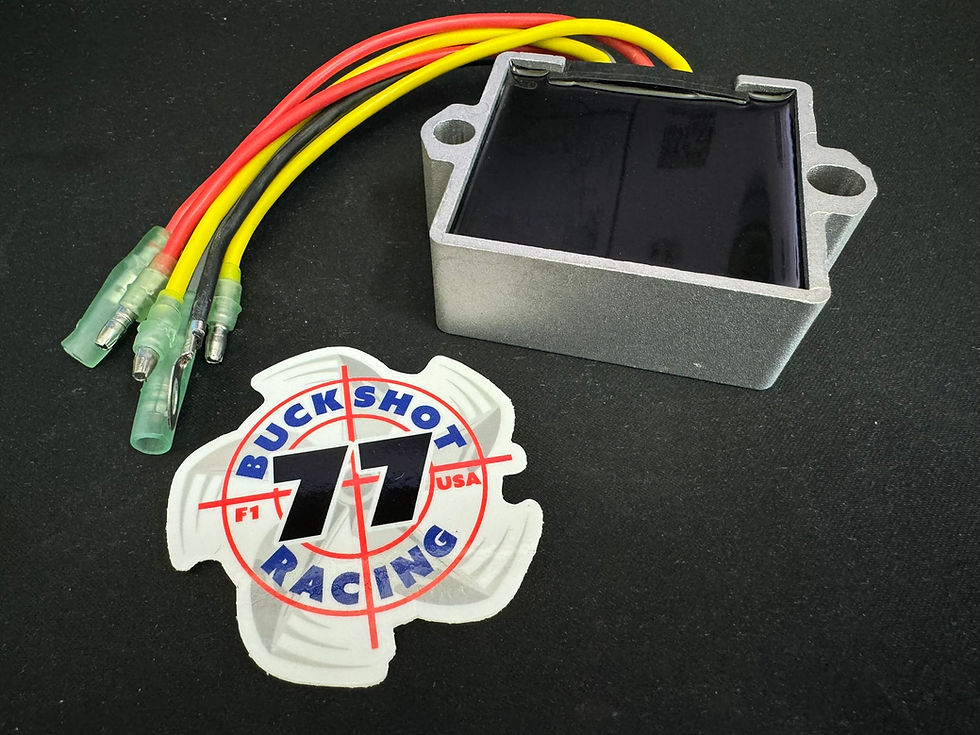

The Mercury 20-amp voltage regulator rectifier is a key charging-system component used on many classic Mercury and Mariner 2-stroke outboards. Commonly searched by part numbers 8M0084173, 815279T, 854515T1, 830179T, 883072T, 856748, Sierra 18-5743, and CDI 194-5279, this six-wire regulator converts AC from the stator into usable DC voltage for battery charging while helping control system voltage.

This regulator is commonly used on Mercury 40 HP, 45 HP, 50 HP, 55 HP, 60 HP, 75 HP, 80 Jet, 90 HP, 100 HP, 115 HP, 125 HP, 135 HP, 150 HP, 175 HP, 200 HP, 220 HP, and 225 HP two-stroke outboards.

Applications include many 3-cylinder, 4-cylinder, and V6 engines, including XR4, XR6, Magnum III, XRi, carbureted V6, EFI, Pro Max 200, Pro Max 225, and SportJet 175 HP and 210 HP jet boat motors. Final fitment should always be confirmed by serial number, charging-system output, and original wiring configuration.

9 Amp, 16 Amp, and 40 Amp Systems

Mercury used several charging-system designs across its 2-stroke engine families. Earlier engines may use 9-amp or 16-amp charging systems, while many later V6 engines use a 40-amp charging system with two separate 20-amp regulator rectifiers. On these dual-regulator systems, each regulator handles part of the stator’s charging output. On many pre-1990 or lower-output motors, only one regulator is used.

It is important to understand that this regulator is part of the battery charging system, not the ignition firing circuit. However, charging-system problems can still damage ignition components because the stator, switch boxes, battery cables, grounds, and regulator wiring all share the same harsh electrical environment.

Six-Wire Regulator Wiring

The Mercury-style six-wire regulator is straightforward when identified by wire function.

The two yellow wires are AC input leads and connect to the two yellow stator charging wires.

The two red wires are DC output leads and should connect to 12-volt battery positive, often at the starter solenoid battery-cable terminal or factory charging harness connection.

The gray wire is the tachometer signal lead and connects to the gray tach wire in the harness or directly to the tachometer circuit where applicable.

The black wire is ground and should be connected to a clean engine-block ground or proper battery-negative ground point. Weak grounds are a common cause of failed regulators, weak charging, erratic tach readings, and intermittent electrical problems.

Why Mercury Regulators  Fail

Most regulator failures are caused by heat, corrosion, poor connections, weak grounds, water intrusion, or battery-cable issues. A regulator must control stator output while dissipating heat, so any resistance in the circuit creates additional heat. Brown connectors, melted insulation, hardened butt splices, and burned red or yellow leads are warning signs that the regulator, stator, or wiring harness has been overheating.

Water ingress is especially destructive. Once moisture enters a connector, corrosion increases resistance. Resistance creates heat, heat damages insulation, and the connection can eventually short to ground. This can damage the stator charge windings, tach circuit, regulator rectifier, and nearby ignition components.

Buckshot Racing #77 Installation Recommendation

For long-term reliability, Buckshot Racing #77 recommends using marine-grade crimp connections, clean terminals, sealed connectors, and heavy-wall adhesive-lined heat shrink instead of weak or poorly sealed butt-splice repairs. The connection should be mechanically strong, electrically clean, and protected from water intrusion.

Before installing a new regulator rectifier, inspect the stator wires closely. If the yellow leads are dark, brittle, melted, or burned, the stator may have overheated and should be tested before the engine is returned to service. Battery cables, grounds, and solenoid connections should also be cleaned and tightened.

On 40-amp Mercury V6 systems using two regulators, inspect both units and all red and yellow wiring. If one regulator failed from heat or water damage, the other may already be weakened. Always follow the factory harness layout and avoid randomly tying tach leads or charging wires together.

Part Number Cross References

This Mercury regulator rectifier family is commonly searched under 8M0084173, 854515T1, 854515, 815279T, 815279, 8152793, 8152795, 830179T, 8301792, 830179A3, 856748, 883072T, 18-5743, 18-17300, CDI 194-5279, and 65W-81960-10-00. Some owners also encounter discontinued Mercury numbers such as 88825A1 and 88825A7. Older systems should be checked carefully, because some early engines used different rectifier and regulator layouts.

Final Thoughts

A Mercury 20-amp six-wire voltage regulator rectifier may look simple, but it plays a major role in charging-system reliability. Whether you are servicing a Mercury 40 HP two-stroke, 115 HP inline 4-cylinder, 150 XR6, 175 XRi EFI, 200 HP carbureted V6, Pro Max 225, or SportJet 210, clean wiring and correct installation are critical.

Replacing the regulator is only part of the repair. The best results come from inspecting the stator, cleaning grounds, sealing connections, checking battery cables, and verifying charging voltage after installation. Done correctly, this repair restores stable battery charging and helps protect Mercury and Mariner 2-stroke outboards used on fishing boats, lake boats, jet boats, and high-performance hulls.
