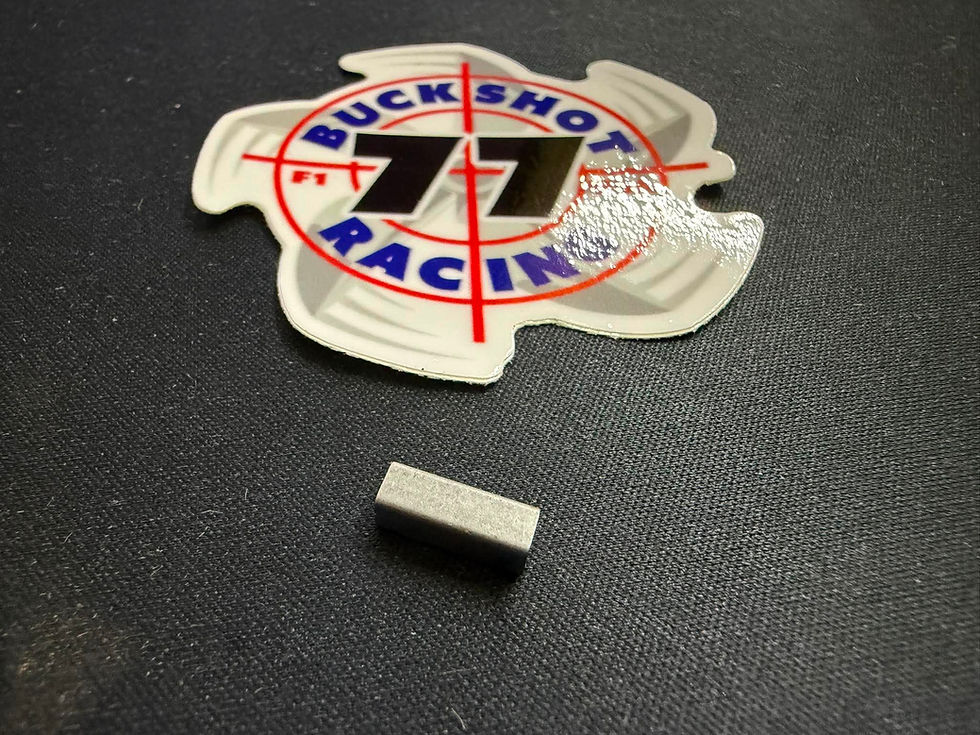

The “Big Key” Bearing Carrier Key Stock from Buckshot Racing #77 is a performance upgrade engineered to improve the strength, stability, and long-term reliability of Mercury outboard lower units.
Designed for Mercury Marine and Mercury Racing gearcases, this oversized stainless-steel key replaces the factory bearing carrier key stock used in many standard and high-performance lower units.
Although small in size, the bearing carrier key performs a critical function inside the gearcase. Its purpose is to lock the bearing carrier into the housing and prevent rotation under load. In high-horsepower or surfacing-propeller applications, the factory key can loosen, deform, or allow slight carrier movement inside the housing. Over time, this movement can damage the keyway, wear the carrier bore, and eventually lead to carrier spin or lower unit failure.
The Buckshot Racing #77 Big Key was developed specifically to address those issues through a longer, tighter-fitting, marine-grade stainless-steel design built for demanding performance applications.
Why Bearing Carrier Keys Fail
Mercury lower units experience significant torque loads through the propeller shaft and bearing carrier assembly. The factory key stock helps prevent the carrier from rotating inside the gearcase housing, but repeated stress and vibration can gradually wear the key and surrounding keyway surfaces.
This is especially common in high-performance lake boats, drag racing setups, Sportmaster gearcases, CLE gearcases, coned lower units, and offshore applications where surfacing propellers and elevated horsepower place extreme load on the lower unit.
As wear increases, the bearing carrier may begin to move slightly within the housing. Even small amounts of movement can create additional stress, accelerating wear and increasing the likelihood of catastrophic gearcase damage.
Oversized “Big Key” Design Advantages
The Buckshot Racing #77 Big Key improves upon the factory design by increasing both the engagement length and fitment precision of the key stock.
A traditional Mercury key typically measures approximately 0.250 inches in length. The Big Key increases that length to 0.400 inches, creating roughly 60 percent more engagement area between the bearing carrier and housing.
This larger contact surface improves load distribution and significantly increases shear load capacity under heavy torque conditions.
In addition to increased length, the Big Key is manufactured slightly oversized by several thousandths of an inch. This creates a tighter, more secure fit within the keyway and helps eliminate the looseness commonly found with worn factory keys.
The tighter fit reduces movement, improves carrier stability, and helps prevent vibration-related wear over time.
Increased Strength and Lower Unit Protection
One of the primary benefits of the Big Key design is improved resistance to shear forces generated by high-load outboard applications. The larger engagement area allows torque loads to be distributed more evenly across the key and housing, reducing localized stress concentrations.
This helps reduce the chance of key deformation or carrier spin while extending the life of the keyway and bearing carrier bore.
For performance applications operating at elevated RPM or using surfacing propellers, improved carrier retention can significantly increase lower unit reliability.
Marine-Grade Stainless Steel Construction
The Buckshot Racing #77 Big Key is manufactured from marine-grade stainless steel for superior corrosion resistance and long-term durability in marine environments.
Unlike standard carbon steel keys that may rust or degrade over time, stainless steel maintains its structural integrity while resisting oxidation and corrosion in both freshwater and saltwater conditions.
This makes the Big Key especially well-suited for high-performance boating, offshore applications, and long-term use in harsh environments where moisture exposure is constant.
Fitment and Compatibility
The Big Key is designed to replace Mercury OEM part number 28-30281 and fits many Mercury lower unit applications utilizing this style of bearing carrier retention system.
This includes many standard Mercury lower units, Sportmaster gearcases, CLE gearcases, coned lowers, and Mercury Racing gearcases used on 2.0L, 2.4L, 2.5L, and 3.0L outboards.
Because Mercury used similar carrier retention systems across multiple generations of lower units, the Buckshot Racing #77 Big Key is compatible with a wide range of gearcase configurations.
Additional cross-reference numbers associated with related carrier and lower unit applications include 11405, 18-2376, 73020A20, 775497, 818763A10, 818763A11, 818763A4, 818763T11, 9-72602, 18-3751, 21120, 35912, 445-226, 509035, 52834, 775419, 79448, 8M0168577, 8M2000347, 8M2011027, 9-72155, 11380, 18-2299, 445-224, 52833, 79447, and 9-72641.
Whether running a Sportmaster, CLE, coned lower, or standard Mercury 2.0, 2.4, 2.5, or 3.0 Liter gearcase, upgrading from the factory 28-30281 key stock to the Buckshot Racing #77 Big Key is an easy way to improve lower unit durability and long-term reliability.
