Mercury's 3.0L and 3.2L V6 High Performance outboards place exceptional loads on the lower unit. Engines such as the 250XB EFI, 250XS Optimax, 300 Pro Max, 300X EFI, and 300XS Optimax routinely operate at high engine speeds with surfacing propellers, rapid acceleration, and heavy propeller thrust. Under these conditions, maintaining proper driveshaft sealing is critical to protecting the gears, bearings, and lubricant inside the gearcase.
Mercury recognized a weakness in the original production seal carrier and released Service Bulletin 2001-11, introducing an updated Driveshaft Oil Seal Carrier Kit (840836A2) for standard-production 3.0L gearcases.
The bulletin explains that excessive internal gearcase pressure can force the original driveshaft oil seal carrier upward, bending the water pump base plate and damaging the water pump impeller.
Conditions contributing to this pressure include overfilled gearcases, water intrusion into the gearcase, and elevated engine mounting heights. The revised carrier was developed to better control seal movement and improve long-term reliability.

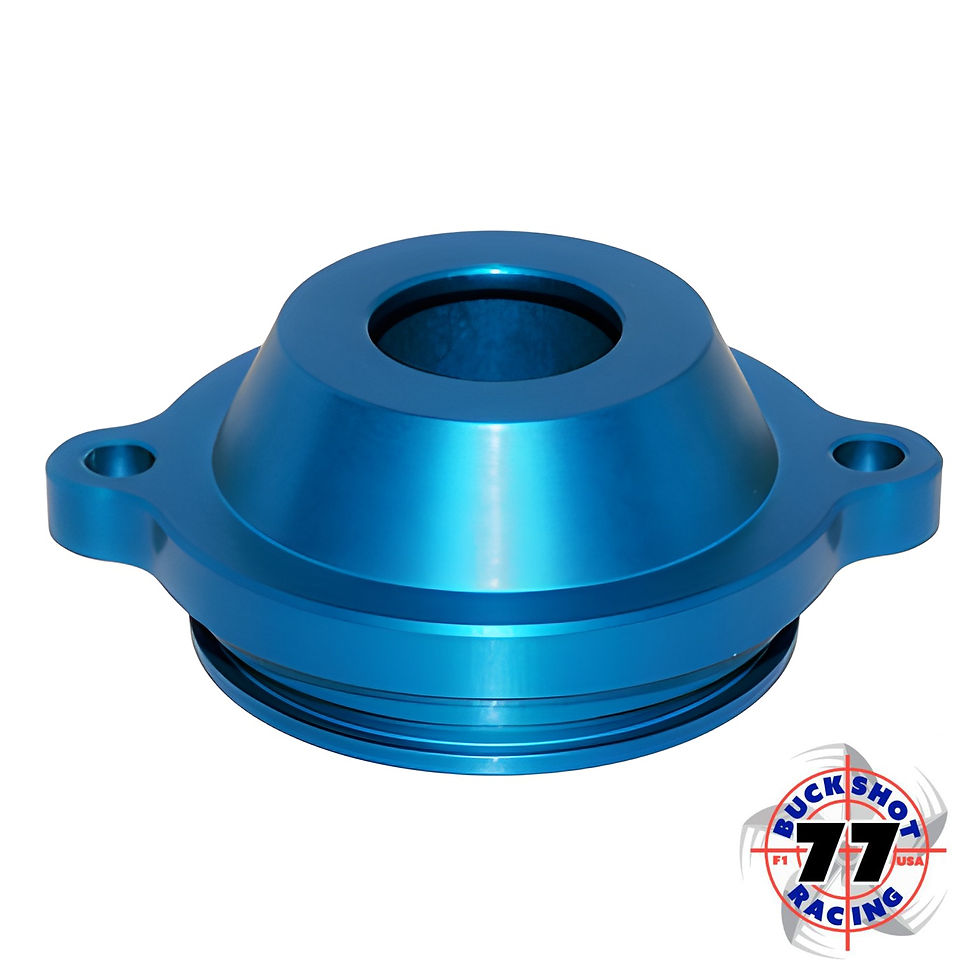

The Buckshot Racing #77 Billet Driveshaft Oil Seal Carrier builds upon Mercury's improved design by replacing Mercury OEM 840836, 840836A1, 840836-A1, 840836A2, and 840836-A2 with a precision CNC-machined billet aluminum component designed for even greater strength and durability.
Precision Machined from 6061 Billet Aluminum
Unlike the original cast carrier, the Buckshot Racing #77 version is CNC-machined from 6061 billet aluminum. Billet construction eliminates casting porosity and provides excellent dimensional consistency throughout the part.
Tight machining tolerances help keep the driveshaft properly centered within the carrier, reducing shaft movement and promoting even loading of the oil seals during high-RPM operation.
The increased rigidity of billet aluminum also helps resist deflection under heavy propeller loads commonly experienced by Sport Master and Torque Master gearcases used on performance bass boats, offshore boats, drag boats, and recreational performance applications.
Blue Anodized for Long-Term Corrosion Resistance
Following machining, each carrier receives a durable blue anodized finish. Hard anodizing increases surface hardness, improves wear resistance around the seal bores, and provides excellent corrosion protection in both freshwater and saltwater environments.
The anodized finish also makes the billet carrier easily identifiable during future maintenance while helping protect the aluminum from oxidation and pitting that can develop over years of marine service.
Improved Stability for the Driveshaft and Oil Seals
The driveshaft oil seal carrier performs more than simply holding the oil seals in place. It supports the driveshaft as it enters the upper gearcase while maintaining proper seal alignment against the rotating shaft.
A rigid, accurately machined carrier helps reduce seal distortion and uneven lip loading, allowing the seals to maintain consistent contact with the driveshaft. This helps retain gear lubricant inside the gearcase while reducing the possibility of water entering the gearcase through the driveshaft opening.
Maintaining proper sealing is especially important on high-performance Mercury engines where contaminated gear oil can quickly lead to bearing wear, gear damage, and expensive lower unit repairs.
Direct Replacement for Mercury 840836, 840836A1 & 840836A2
The Buckshot Racing #77 Billet Driveshaft Oil Seal Carrier is manufactured as a direct replacement for Mercury OEM 840836, 840836A1, 840836-A1, 840836A2, and 840836-A2. Installation requires no machining or modification and uses the original mounting location within compatible Sport Master and Torque Master gearcases.
Applications include many Mercury 250XB 3.0L EFI, 250XS 3.0L Optimax, 300 Pro Max 3.0L EFI, 300X 3.2L EFI, and 300XS 3.2L Optimax outboards equipped with Sport Master or Torque Master lower units. As with any drivetrain component, compatibility should be verified using the engine serial number and parts catalog before ordering.
Buckshot Racing #77 Tech Tip
Whenever replacing a driveshaft oil seal carrier, inspect the driveshaft sealing surface for grooves or corrosion and replace the upper driveshaft oil seals if any wear is present.
The Mercury service bulletin also recommends inspecting the water pump base plate and impeller for damage if the original carrier has moved upward due to excessive gearcase pressure.
Before returning the lower unit to service, pressure- and vacuum-test the gearcase to verify seal integrity and check that the gearcase is filled with the correct amount of gear lubricant—not overfilled—to help prevent excessive internal pressure.
Final Thoughts
The Buckshot Racing #77 Billet Driveshaft Oil Seal Carrier combines the improved design introduced in Mercury Service Bulletin 2001-11 with the added strength of CNC-machined 6061 billet aluminum and a corrosion-resistant blue anodized finish.
Replacing Mercury OEM 840836, 840836A1, and 840836A2, it provides a durable upgrade for SportMaster and TorqueMaster gearcases used on Mercury's legendary 3.0L and 3.2L V6 High Performance outboards.
For owners rebuilding or servicing these lower units, it offers improved structural rigidity, precise fitment, and dependable long-term sealing while maintaining full OEM compatibility.
For technical support, contact Mike Hill at +1-714-697-1716 or mike@buckshotracing77.com
