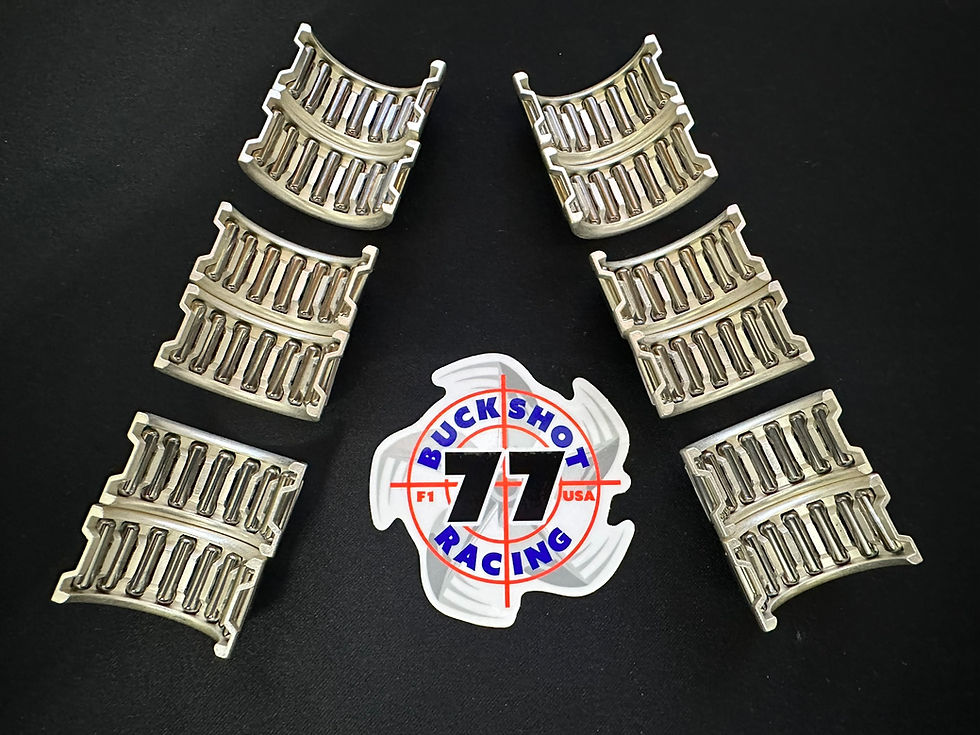

The Mercury metal-caged connecting rod roller bearing set is a serious upgrade for performance Mercury 2.0, 2.4, 2.5 Liter 2-stroke outboards, especially engines operated at sustained high RPM in drag racing, offshore racing, river racing, lake racing, and high-performance recreational use.
These bearings replace Mercury OEM-style connecting rod bearing numbers, including 17514A1, 821146A1, 8M0082405, 8M0234886, and related Mercury rod bearing part numbers used across many two-stroke powerheads.
Inside a high-output Mercury outboard, the connecting rod bearing lives in one of the harshest areas of the engine. It must handle crankshaft speed, combustion load, piston direction change, oil film control, heat, and vibration every time the engine turns over.
At elevated engine speeds, especially in Mercury Racing and high-performance V6 builds running above 7,000 to 10,000+ RPMS, bearing cage strength becomes extremely important.
Why Metal-Caged Rod Bearings Matter
Many stock-style Mercury rod bearings use plastic cages that work well in normal recreational service, but extreme RPM, heat, detonation, lean conditions, or marginal lubrication can quickly push them beyond their comfort zone.
When a plastic cage fails, the result can be severe. Broken cage material can scatter through the crankcase, the rollers can lose control, and the engine may suffer crankshaft, rod, piston, or cylinder damage.
A metal-caged roller bearing provides improved cage strength and better durability in demanding high-speed operation. The cage keeps the rollers properly spaced and controlled as the rod rotates around the crankpin. Better roller control helps reduce friction, heat, and instability during long high-RPM pulls, offshore running, drag passes, and hard acceleration.
Built for Performance Mercury Outboards
These race rod bearings are a strong choice for Mercury V6 builders working with 2.0 Liter, 2.4 Liter, and 2.5 Liter two-stroke platforms, including many 150 HP, 175 HP, 200 HP, 225 HP, 245 HP, 260 HP, 280 HP, and 300 Drag applications.
They are commonly used in builds based on Black Max, XR2, XR4, XR6, XRi, Laser EFI, Pro Max 200, Pro Max 225, 225X, 245 Carb, 260 EFI, 280 ROS, S3000, SST-120, SST-140, 300 Drag, and other Mercury Racing-style powerheads.
They are also commonly cataloged for many Mercury 30 HP through 225 HP two-stroke outboards, select SportJet 90 HP, 120 HP, 175 HP, 200 HP, 210 HP, and 240 HP jet-drive engines, and certain Force 40 HP through 120 HP applications using compatible Mercury-style rod bearing dimensions. As always, final fitment should be confirmed by engine serial number, crankshaft style, connecting rod type, and factory parts diagram before assembly.
Koyo / JTEKT Bearing Quality
These bearings are supplied as Koyo / JTEKT metal-caged roller bearings. Koyo is the OEM bearing brand of JTEKT, and JTEKT lists needle roller bearings among its major bearing product categories. JTEKT North America also describes itself as an engineering and manufacturing company focused on OEM, marine, automotive systems, bearing solutions, and machine tools.
For marine engine builders, consistency matters. Rod bearings are not a place to gamble with unknown parts. A bearing set used in a high-performance Mercury outboard must have proper roller control, clean cage construction, correct fit, and dependable materials.
That is why Buckshot Racing #77 recommends these metal-caged bearings for serious Mercury V6 rebuilds and race-prepped and stock powerheads.
When to Use These Bearings
Metal-caged rod bearings are especially recommended when rebuilding a Mercury V6 that will see high RPM, heavy load, long wide-open-throttle operation, or racing use. They are also a smart upgrade when refreshing an older powerhead where the original bearings are unknown, discolored, worn, contaminated, or have been exposed to previous piston failure debris.
For normal fishing and recreational use, bearing condition still matters. Even a stock Mercury 150 HP or 200 HP two-stroke depends on clean, properly lubricated rod bearings. For performance engines such as a 225 Pro Max, 260 EFI, 280 ROS, or 300 Drag, bearing selection becomes even more critical because crankshaft speed and load increase rapidly with RPM.
Installation Notes for Engine Builders
Connecting rod bearings should always be installed during a clean, controlled powerhead rebuild. Inspect the crankshaft journals, connecting rod big ends, rod bolts, cages, rollers, thrust surfaces, and crankcase sealing surfaces before final assembly.
Any pitting, bluing, scoring, brinelling, or metal transfer on the crankpin or rod surface must be addressed before new bearings are installed.
Proper lubrication during assembly is critical. These bearings rely on two-stroke oil carried through the fuel and crankcase charge, so the engine must be assembled clean, pre-lubed correctly, and broken in with the correct fuel-oil ratio for the application.
Performance engines should also be checked for correct jetting or fuel calibration, cooling condition, timing, and detonation control before being run hard.
Part Number Cross References
This bearing set is commonly searched under Mercury OEM-compatible numbers 16200, 17514, 17514A, 17514A1, 17514A2, 17514B2, 67526, 67526A1, 67526A2, 814337A1, 821146A1, 879366, 8M0045428, 8M0045430, 8M0082405, and 8M0234886.
Each set includes six pairs of Mercury metal-caged race connecting rod roller bearings, enough for one compatible Mercury V6 two-stroke powerhead.
Buckshot Racing #77 Tech Tip
If a Mercury V6 is being rebuilt for performance use, do not reuse questionable rod bearings to save money. A failed rod bearing can destroy a crankshaft, rod, block, piston, and cylinder in seconds.
Always clean the crankcase thoroughly after any previous failure, inspect every oil path and bearing surface, and build the engine with parts suited to the RPM and load it will actually see.
For Mercury Pro Max, XR6, 260 EFI, 280 ROS, S3000, 300 Drag, SportJet, and other high-performance two-stroke outboards, metal-caged rod bearings are one of the smartest upgrades you can make during a powerhead rebuild.
Contact Mike Hill at +1-714-697-1716 or email mike@buckshotracing77.com for technical support.
