How to Find Your Outboard Gear Ratio
.JPG/v1/fill/w_320,h_320/file.jpg)
If you run a Mercury or Mercury Racing outboard, this guide shows you how to find the gear ratio of the lower unit you actually have. You will learn the spin test, the tooth count, the ratios Mercury and Mercury Racing cases commonly use, and how to use the Buckshot Racing #77 gear ratio calculator.
The short answer: Turn the flywheel, count the prop, and divide. That is the gear ratio. On a Mercury V6 it is usually 1.87 or 2.00, unless the case is an OptiMax 1.78, a 3.0 liter Sport Master 1.62, or a Mercury Racing four-stroke. Guess it and the slip number is not right.
Gear ratio is how many times the crank turns for one turn of the propeller. A 1.87:1 lower turns the crank 1.87 times every time the prop goes around. That one number sets prop RPM, the pitch the motor can pull, and whether a slip calculator is telling you the truth.
Lowers get swapped. A 1.87 and a 2.00 will wear the same cowling on a Mercury 2.0, 2.4, or 2.5 liter. A Mercury Racing 300X that left as a Sport Master can come back as a Torque Master. Read the case in your hands, not the badge on the cowl.
Why a wrong gear ratio wrecks the prop call
Prop speed is engine speed divided by the ratio. Theoretical speed uses that prop speed and the pitch on the hub.
Prop RPM = engine RPM ÷ gear ratio
Theoretical mph = (prop RPM × pitch in inches) ÷ 1056
At 5600 RPM a 1.87 case is turning the prop about 2,995 RPM. A 1.62 Sport Master is turning it about 3,457 RPM. Same tach, same 26-inch prop, two different boats. Put 1.87 into the slip calculator on that Sport Master and you will chase a pitch problem you do not have.
A lower number spins the prop faster, so it needs less pitch for the same speed. A 2.00:1 spins it slower, multiplies torque, and can swing a taller prop. That is why a ratio swap changes hole shot even when the hub stamp never moved.
The spin test: find the ratio on the boat
Do this dead. Cowl off. Plug leads off and plugs out, so a two-stroke cannot fire and turns easily. Battery disconnected. Lanyard off. Stay off the prop. Hand turn only, never the starter.
Mark one blade and a fixed spot on the anti-ventilation plate or skeg.
Mark the flywheel the same way.
Shift into forward. Neutral unhooks the prop shaft, and you will count a freewheel.
Put a socket on the flywheel nut and turn in the normal direction, clockwise looking down on most Mercury flywheels. Take the slack out, then start the count.
Turn a round number of flywheel revolutions. Three is a first pass. Five or six is the number you trust.
Read the prop mark. Half a turn is 0.50. Twelve o'clock to four o'clock is about 0.33.
Divide flywheel turns by prop turns. Three flywheel turns and 1.60 prop turns is 1.88:1. That is a 1.87 with a sloppy partial turn, not a secret gearset. Spin it again and round to the published ratio it is sitting on.

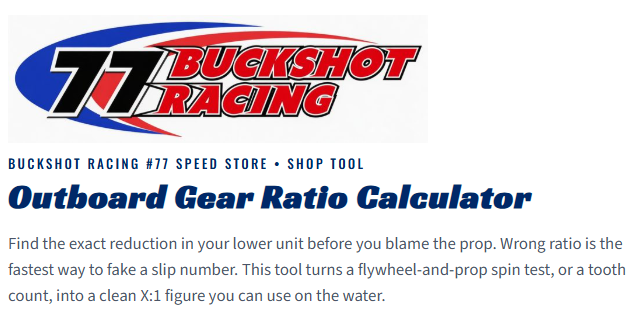

How to use the Buckshot gear ratio calculator
Pick the tab that matches what you have in front of you. Results update as you type, so there is no calculate button.
Spin test tab. Use this on the boat or trailer. Enter the flywheel turns you counted and how far the propeller turned, in decimals. The page loads example values (3 turns and 1.60 prop turns), so replace both with your own counts.
Optional engine RPM. Enter your wide-open-throttle tach reading to see prop RPM at that speed.
Read the result. You get the ratio and a note naming the common Mercury and Mercury Racing ratios it sits closest to. A result of 1.86 or 1.88 is a partial-turn miss on a 1.87, so repeat with five or six flywheel turns before you round to a published ratio.
Tooth count tab. Use this with the case open. Enter driven (forward) gear teeth and pinion teeth. Count only the gear set that sets the reduction.
Prop RPM check tab. The ratio from either method carries over automatically. Enter your engine RPM and pitch to see prop shaft RPM and theoretical speed at 0 percent slip.
Take it to the slip calculator. Run the confirmed ratio, pitch, RPM, and GPS speed through the Buckshot prop slip calculator.
The calculator only does the division. The count has to come off the boat, and the ratio should be confirmed against the serial number and the parts listing.
Tooth count, and when the parts book is enough
With the case open, divide forward-gear teeth by pinion teeth. A 28-tooth forward gear on a 15-tooth pinion is 1.87:1. That is the cleanest number you will get, as long as you are counting the gear set that actually sets the ratio.
Some drives stack an upper reduction on a lower set, so one pair is not always the whole story.
The parts listing is the third check. Match the gearcase and serial number, then treat the listed ratio as a candidate. Sport Master, Torque Master, Fleet Master, 5.44 HD, and R-Drive are not the same number, and a swapped lower will not match the cowling.
Mercury 2.0, 2.4, and 2.5 liter two-strokes
This is the family we see every week: Mercury 2.0, 2.4, and 2.5 liter V6 engines, including Pro Max 225, 260 EFI, and 280 ROS. Most cases are 1.87:1 or 2.00:1. The 2.5 liter OptiMax is the odd one, at 1.78:1. It is a 2.5, but it is not a 1.87. If slip looks impossible on an OptiMax 2.5, check for 1.78 before you condemn the prop.
Mercury 3.0 liter two-strokes
The 300 family steps down. Sport Master cases on the 300, 300 Pro Max, 300X, 300 XS, and 250 XS are commonly 1.62:1. Torque Master and Fleet Master cases are commonly 1.75:1. A 300X with a swapped Torque Master is a 1.75 boat until the spin test says otherwise.
Mercury Racing 200R, 250R, 300R, 450R, and 500R
Ratio follows the gearcase, not the horsepower badge. The Mercury Racing 450R and 500R are simple at 1.60:1. The 300R is not: a Torque Master at 1.75 and a Sport Master at 1.60 will not want the same pitch. If you cannot read the case, spin it.
Engine | Gearcase | Ratio |
Mercury 2.0 / 2.4 / 2.5, Pro Max 225, 260 EFI, 280 ROS | Most cases | 1.87:1 or 2.00:1 |
Mercury 2.5 OptiMax | OptiMax case | 1.78:1 |
Mercury 300, 300 Pro Max, 300X, 300 XS, 250 XS | Sport Master | 1.62:1 |
Mercury 3.0 liter two-stroke | Torque Master or Fleet Master | 1.75:1 |
Mercury Racing 200R | Torque Master or Sport Master | 1.75:1 |
Mercury Racing 250R | Sport Master (CMS spec) | 1.75:1 |
Mercury Racing 300R | Torque Master | 1.75:1 |
Mercury Racing 300R | Sport Master | 1.60:1 or 1.75:1 |
Mercury Racing 300R | Advanced MidSection | 1.85:1 or 1.60:1 |
Mercury Racing 450R | Sport Master or 5.44 HD | 1.60:1 |
Mercury Racing 500R | R-Drive or R-Drive Sport | 1.60:1 |
What each ratio does at 5600 RPM
Ratio | Prop RPM | What it means on the water |
1.60:1 | 3,500 | Mercury Racing 450R, 500R, some 300R Sport Master cases. Fast prop, less pitch for the same speed. |
1.62:1 | 3,457 | Mercury 3.0 liter Sport Master. |
1.75:1 | 3,200 | Mercury 3.0 liter Torque Master, Mercury Racing 200R, 300R Torque Master. |
1.78:1 | 3,146 | Mercury 2.5 OptiMax. Do not call this a 1.87. |
1.87:1 | 2,995 | The usual Mercury 2.0, 2.4, and 2.5 liter case. |
2.00:1 | 2,800 | Slower prop, more torque, takes more pitch. |
Worked example: how a wrong ratio shows up in slip
Slip % = (theoretical mph − GPS mph) ÷ theoretical mph × 100
A Mercury 3.0 liter Sport Master boat turns 5,800 RPM at wide open throttle on a 27-inch pitch prop. The GPS reads 80 mph. The owner assumes the usual 1.87 case.
Using the wrong ratio (1.87):
Prop RPM = 5,800 ÷ 1.87 = 3,102
Theoretical mph = 3,102 × 27 ÷ 1056 = 79.3
Slip = (79.3 − 80) ÷ 79.3 = −0.9 percent
Negative slip is not possible on a real hull. The boat is not outrunning its prop. The ratio is wrong.
Using the real ratio (1.62, confirmed by spin test):
Prop RPM = 5,800 ÷ 1.62 = 3,580
Theoretical mph = 3,580 × 27 ÷ 1056 = 91.5
Slip = (91.5 − 80) ÷ 91.5 = 12.6 percent
That is a believable number, and now the pitch call is based on something real. Same boat, same tach, same GPS. The only thing that changed was the ratio.
Then run the slip
Once the ratio is honest, put pitch, RPM, and GPS through the Buckshot prop slip calculator. Negative slip, or 30 percent on a clean race hull, usually means the ratio or the tach is wrong. The GPS is rarely the liar.
FAQ gear ratio questions we get in the shop
How do I find my outboard gear ratio without pulling the case? Use the spin test. Forward gear, engine dead, flywheel turns divided by prop turns. Count five or six flywheel turns if the prop stops between marks.
Can I read the ratio off the horsepower badge? No. Ratio follows the gearcase. Cases get swapped, and two Mercury 300s in the same pits can be 1.62 and 1.75.
What if the spin test says 1.86 or 1.88? That is a partial-turn miss on a 1.87. Count more flywheel turns and round to the published ratio.
Which Mercury Racing 300R ratio do I enter? Torque Master is 1.75:1. Sport Master is 1.60:1 or 1.75:1. Advanced MidSection is 1.85:1 or 1.60:1. If the case is not marked, spin it.
What gear ratio does a Mercury OptiMax 2.5 have? It is commonly 1.78:1, not the 1.87 you see on most Mercury 2.0, 2.4, and 2.5 liter V6 cases. Confirm with the serial number and a spin test.
